Hot DIP Galvanized Steel Grating 25X5 Steel Grating Weight Per Square Meter

Hot DIP Galvanized Steel Grating 25X5 Steel Grating Weight Per Square Meter
Hot DIP Galvanized Steel Grating 25X5 Steel Grating Weight Per Square Meter Hot DIP Galvanized Steel Grating 25X5 Steel Grating Weight Per Square Meter Hot DIP Galvanized Steel Grating 25X5 Steel Grating Weight Per Square Meter Hot DIP Galvanized Steel Grating 25X5 Steel Grating Weight Per Square Meter

Großes Bild :  Hot DIP Galvanized Steel Grating 25X5 Steel Grating Weight Per Square Meter

Produktdetails:
Herkunftsort: China
Markenname: GNEE
Zertifizierung: ISO9001,SGS
Zahlung und Versand AGB:
Min Bestellmenge: 10 Quadratmeter
Preis: negotiable
Verpackung Informationen: Seetüchtige Verpackung, d.h. Holz- oder Stahlgestell mit Stahlband, etc.
Lieferzeit: 5-9 Arbeitstage
Zahlungsbedingungen: L/c, t/t
Versorgungsmaterial-Fähigkeit: 100 Tonnen/Woche
Kontakt

Hot DIP Galvanized Steel Grating 25X5 Steel Grating Weight Per Square Meter

Beschreibung
Hervorheben:

hot dip galvanized steel grating

,

25x5 steel grating weight

,

heavy duty steel grating

Hot DIP Galvanized Steel Grating 25X5 Steel Grating Weight Per Square Meter
Product Description

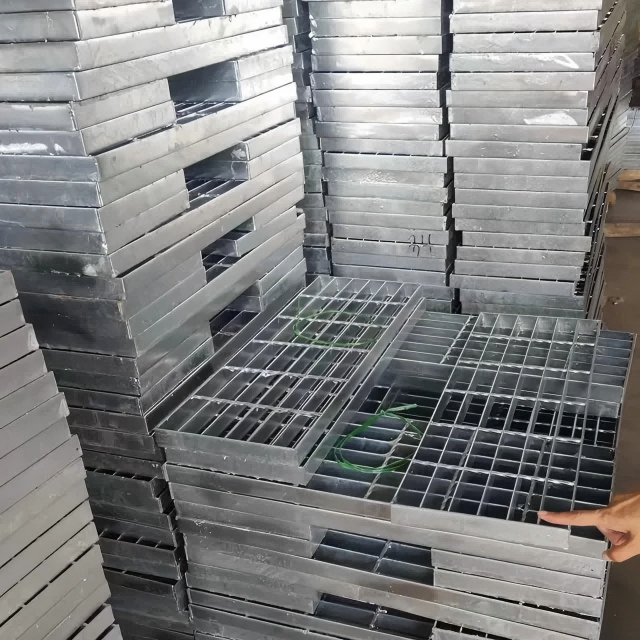

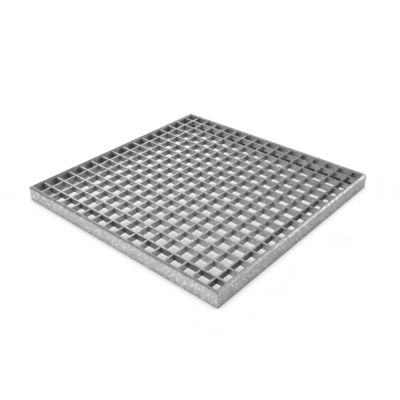

Heavy duty steel grating are made by welding with heavy flat bar and cross/round bars with certain distances. Our Steel Grating enjoy the feature of high strength, light structure, high bearing, convenience for loading and other properties.

Steel grating is hot dip galvanized processing, offers the following advantages: saving materials, saving investment, easy installation, durable in use, light structure, no accumulation of dirt, good performance of ventilation, lighting, heat dissipation, anti-corrosive, anti-acid an alkali corrosion.

Specifications
15-w-4 Bearing Bars at 15/16" O.C. Cross Bars at 4" O.C. 15-w-2 Bearing Bars at 15/16" O.C. Cross Bars at 2" O.C.
19-w-4 Bearing Bars at 1-3/16" O.C. Cross Bars at 4" O.C. 19-w-2 Bearing Bars at 1-3/16" O.C. Cross Bars at 2" O.C.
22-w-4 Bearing Bars at 1-3/8" O.C. Cross Bars at 4" O.C. 22-w-2 Bearing Bars at 1-3/8" O.C. Cross Bars at 2" O.C.
30-w-4 Bearing Bars at 1-7/8" O.C. Cross Bars at 4" O.C. 30-w-2 Bearing Bars at 1-7/8" O.C. Cross Bars at 2" O.C.
38-w-4 Bearing Bars at 2-3/8" O.C. Cross Bars at 4" O.C. 38-w-2 Bearing Bars at 2-3/8" O.C.
Product Name Steel grating
Material Low carbon steel / Stainless steel
Grade CN: Q235, Q345, US: A36, UK: 43A
Standard CN: YB/T4001-1998, US: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS
Certification CE, GOST, ISO9001, ISO14001, HSE
Bearing bar size 50X4,50X5,60X5,75X8,100X8,100X10mm, etc
Bearing bar pitch 20,25,30,32.5,34.3,40,50,60,62,65mm
Bearing bar type Plain, Serrated (tooth-like), I bar (I section), Serrated-I
Cross bar size 6X6, 8X8mm (twisted bar)/5, 6, 8mm (round bar)
Cross bar pitch 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.
Panel size 3x20ft,3x24ft,3x30ft,5800x1000,6096x1000, as request
Surface treatment Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers' requirement.
Galvanization Standard CN: GB/T13912, US: ASTM (A123), UK: BS729
Color Silver/Black
Hot DIP Galvanized Steel Grating 25X5 Steel Grating Weight Per Square Meter 0
Applications

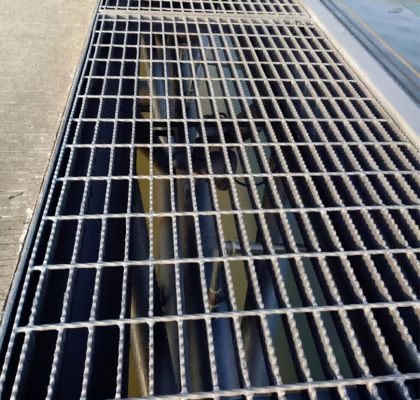

Steel grating can be widely used in petrochemical, water plants, sewage treatment plants, municipal engineering, environmental engineering and other fields of platforms, walkways, trestle bridge, ditch cover, covers, ladders, fences and railings etc.
Banding

Heavy duty gratings are commonly subjected to shock and impact loads and it is highly recommended that all open ends be banded. The welded band bar helps distribute impact loads and minimizes distortion when subjected to repetitive traffic patterns.

Serrated Surface

Optional serrated bearing bars enhance skid resistance. Consider this surface for applications subject to the accumulation of liquids or lubricants or inclined grating installations.

Hot DIP Galvanized Steel Grating 25X5 Steel Grating Weight Per Square Meter 1
