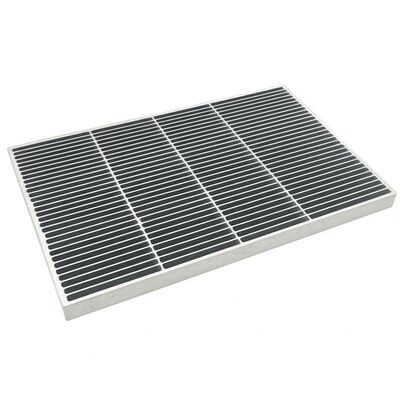

Durable Galvanized Steel Grating for Industrial Applications

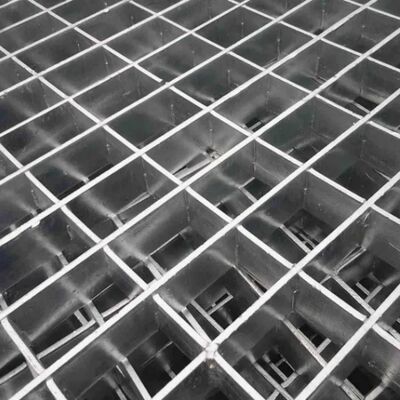

Steel grating, also known as steel grid or bar grating, is a versatile and robust flooring solution designed for industrial, commercial, and architectural applications. Manufactured from high-quality carbon or stainless steel, our steel grating features a lightweight yet durable design that ensures excellent load-bearing capacity and long-lasting performance.
Key Features
- Slip-resistant surface for enhanced safety
- Customizable sizes and spacing options
- Open design for optimal drainage and air circulation
- Ideal for factories, walkways, and drainage covers
- Meets industry safety standards
- Easy installation and maintenance
Product Specifications
Material Standards
ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304, Mild steel & Low carbon steel, etc.
Bearing Bar Dimensions
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10, 100x10mm, etc.
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3, etc.
US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4", 1"x1/8", 1 1/4"x1/8", 1 1/2"x1/8", etc.
Bearing Bar Pitch
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4" etc.
Surface Treatment
Untreated (black), hot-dipped galvanized, powder coated, electroplate, painting or as per customer requirements.
Grating Styles
Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar

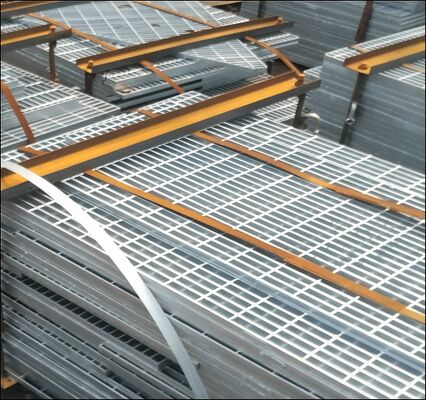

Packing Options
LCL (less than container load): Packed with plastic film then on pallets
FCL (full container load): Nude packing
Other special packaging: According to customer requirements
Customization of your drawing or unique sizes are available
Load Capacity Specifications
| Bearing Bar Pitch |
Cross Bar Pitch |
Load Steel Size (Width × Thickness) |
| 30 |
100 |
G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 |
G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 |
| 40 |
100 |
G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 |
G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 |
| 60 |
50 |
G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Bearing Bar Pitch |
Cross Bar Pitch |
Load Steel Size (Width × Thickness) |
| 30 |
100 |
G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 |
G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 |
| 40 |
100 |
G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 |
G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 |
| 60 |
50 |
G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
