Stainless Steel Grating with G405/40/100 Specification in 304, 304L, 316, 316L Stainless Steel and Serrated Surface

Stainless Steel Grating with G405/40/100 Specification in 304, 304L, 316, 316L Stainless Steel and Serrated Surface
Stainless Steel Grating with G405/40/100 Specification in 304, 304L, 316, 316L Stainless Steel and Serrated Surface Stainless Steel Grating with G405/40/100 Specification in 304, 304L, 316, 316L Stainless Steel and Serrated Surface Stainless Steel Grating with G405/40/100 Specification in 304, 304L, 316, 316L Stainless Steel and Serrated Surface

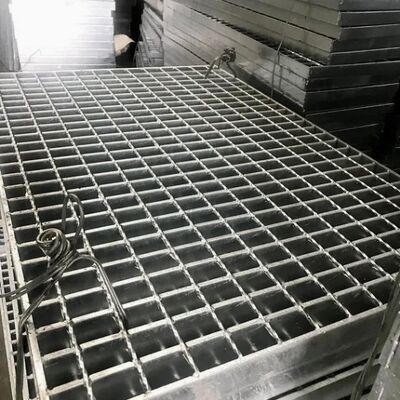

Großes Bild :  Stainless Steel Grating with G405/40/100 Specification in 304, 304L, 316, 316L Stainless Steel and Serrated Surface

Produktdetails:
Markenname: Gnee
Zahlung und Versand AGB:
Min Bestellmenge: 2 STÜCK
Verpackung Informationen: Mit Metallband befestigen. Mit Palette verpacken, außen mit wasserfester Kunststofffolie umwickeln.
Lieferzeit: Versand innerhalb von 20 Tagen nach Zahlungseingang
Versorgungsmaterial-Fähigkeit: 300.000 Quadratmeter/Quadratmeter pro Monat
Kontakt

Stainless Steel Grating with G405/40/100 Specification in 304, 304L, 316, 316L Stainless Steel and Serrated Surface

Beschreibung
Hervorheben:

G405/40/100 Specification Stainless Steel Grating

,

304

,

304L

,

316

,

316L Stainless Steel Grating

,

Serrated Surface Steel Bar Grating

Industrial Steel Floor Grating Solutions
Steel bar grating is engineered for exceptional strength and durability, manufactured from carbon steel, aluminum, or stainless steel. Available in four primary construction types—welded bar, press-locked, swage-locked, and riveted grating—these products offer both smooth and serrated surface options to meet diverse application requirements.
With extensive style and size variations, steel grating serves multiple functions including stair treads, walkways, platforms, flooring, trench covers, wheeled equipment pathways, security screens, and heavy-duty construction applications.
Stainless Steel Grating Applications
Stainless steel bar grating is the preferred choice for food processing facilities and environments where both corrosion resistance and aesthetic appeal are essential. These gratings deliver superior performance through:
  • Exceptional corrosion resistance
  • High wear resistance
  • Extended service life that offsets initial manufacturing costs

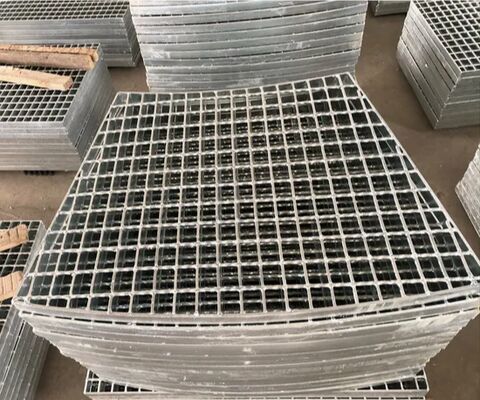

Stainless Steel Grating with G405/40/100 Specification in 304, 304L, 316, 316L Stainless Steel and Serrated Surface 0
Product Specifications
Our stainless steel bar grating sheets with specification code G405/40/100 feature bearing bars measuring 40mm deep and 5mm thick, with bearing bar spacing of 40mm and cross bar spacing of 100mm. The theoretical weight is approximately 49.6 kg/m².
Manufacturing options include manual welding (MW) for custom sizes and press welding (PW) with maximum widths up to 1200mm.
Technical Specifications
Specification Description
Material 304, 304L, 316, 316L stainless steel
Manufacturing Process Welded, swage-locked, or press-locked
Surface Type Standard plain surface, serrated surface
Cross Bar Spacing 2" or 4", center to center
Bearing Bar Spacing 15/16" or 1-3/16", center to center
Bearing Bar Height 20mm to 60mm
Bearing Bar Thickness 2mm to 5mm
Cross Bar Size 4mm to 10mm diameter
Slip Resistance Serrated or plain surface, depending on application
Installation Method Welding, clips, or bolts and nuts
Compliance Meets industry standards including ASTM, ISO, and ANSI/NAAMM
For detailed safe load data and engineering specifications, please contact our technical team for professional assistance.

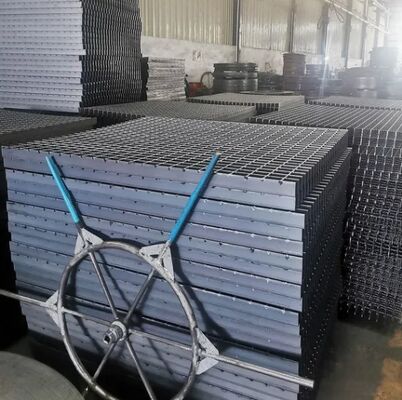

Stainless Steel Grating with G405/40/100 Specification in 304, 304L, 316, 316L Stainless Steel and Serrated Surface 1

Größe und Tag:

heavy duty steel grating,

steel catwalk grating,

stainless steel bar grating
